Insulated Metal Panels

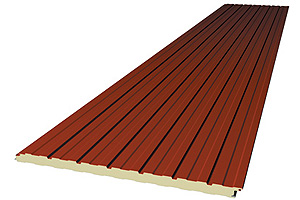

ThermalClad™

Double-walled insulated panels with attractive profiles

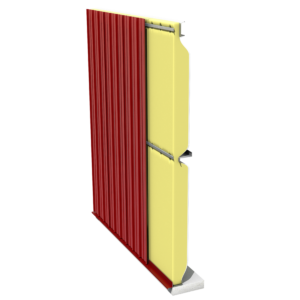

ThermalClad™ wall panels offer superior thermal performance for your commercial application. These sturdy double walled sandwich panels have an insulated core made from foamed in-place, blister free, non-CFC polyurethane. The embossed G-90 steel exterior panels are coated in 70% fluoropolymer finish to provide long term, low maintenance performance. Interior panels are planked design 24 gauge steel, factory coated with a white polyester finish. USDA approved finishes available. Color choices shown on the product sheet. See examples of projects with ThermalClad™ wall panels.

Download Product Information for ThermalClad Plank

Download Product Information for ThermalClad Architecture

Download Product Information for ThermalClad Reveal

  • 36" wide coverage on ThermalClad Architectural profile
  • 42" wide coverage on ThermalClad Shallow Plank and Reveal profiles
  • Lengths from 8' to 32' Architectural; from 8' to 40' Planked and Reveal
  • Concealed fastener installation
  • Four thickness available
  • Color-matched accessories
  • Low maintenance

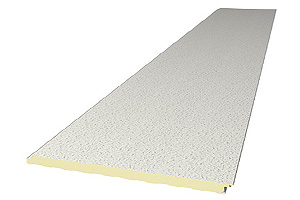

ThermalClad TuffWall™

A textured exterior version of our ThermalClad™ insulated wall panels

TuffWall offers all the advantage of ThermalClad and an attractive, textured exterior. Color choices are shown on the product sheet.

Download Product Information for ThermalClad Tuff-Wall

  • 42" wide coverage
  • Lengths from 8' to 40'
  • Concealed fastener installation
  • R-Values up to 34.9 available
  • Four thickness available
  • Color-matched accessories
  • Low-maintenance
